Snap tester
Descripción
Snap tester
button snap tester
pull tester
pull push tester
Snap tester (pull tester), to determine the holding or breaking strength of button or snap fasteners onto garments or toys. Snap tester (pull tester) complies with ASTM PS79/F963, EN71-1, etc.
Application
Snap Tester, to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys, also as a Push Pull Tester applies for compression and tensile testing of small samples(special attachments are available).

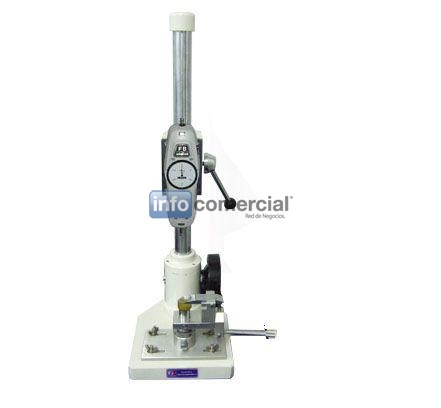

Snap tester Consists of an upper snap clamp, a lower fabric clamp and force gauge mounted on a stand, a hand wheel on the bottom of snap tester which allows fine control with convenient operation.
The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp. By turning the hand wheel, the operator can apply a specific force and the holding force or the breaking strength can be recorded. The capability of Snap tester can be enhanced with clamps & accessories for testing of other Snaps, Jean Buttons, Four Hole Buttons & Garments Accessories such as Zippers, Bows, Appliqué, Toggles, Hooks/Bars, and D-Rings, amongst others.
Related testers(optional order)
The detachment of a snap or other part may be classed as small parts; whilst broken small parts may require sharp point & sharp edge testing. As a result, additional testing equipment may be recommended, such as: Small Parts Cylinder, Sharp Point Tester, Sharp Edge Tester, Button Impact Tester, etc.
Standard Accessories
Imada / Sundoo Force Gauge-30kgf - 1 Pc
Upper Stud Clamp - 1 Pc
Snap Clamp - 1 Pc
Lower Fabric Clamp, Lever Armlocking - 1 Pc
Three Pronged Clamp - 1 Pc
Standard Pressure Clamp - 1 Pc
Standards
ASTM PS79-96, ASTM F963, EN 71-1,
16 CFR 1500.51-53, M&S P115A
Weight 35 Kg
Dimensions 230x280x750 mm(LxWxH)
button snap tester
pull tester
pull push tester
Snap tester (pull tester), to determine the holding or breaking strength of button or snap fasteners onto garments or toys. Snap tester (pull tester) complies with ASTM PS79/F963, EN71-1, etc.
Application
Snap Tester, to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments or toys, also as a Push Pull Tester applies for compression and tensile testing of small samples(special attachments are available).
Snap tester Consists of an upper snap clamp, a lower fabric clamp and force gauge mounted on a stand, a hand wheel on the bottom of snap tester which allows fine control with convenient operation.
The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp. By turning the hand wheel, the operator can apply a specific force and the holding force or the breaking strength can be recorded. The capability of Snap tester can be enhanced with clamps & accessories for testing of other Snaps, Jean Buttons, Four Hole Buttons & Garments Accessories such as Zippers, Bows, Appliqué, Toggles, Hooks/Bars, and D-Rings, amongst others.
Related testers(optional order)
The detachment of a snap or other part may be classed as small parts; whilst broken small parts may require sharp point & sharp edge testing. As a result, additional testing equipment may be recommended, such as: Small Parts Cylinder, Sharp Point Tester, Sharp Edge Tester, Button Impact Tester, etc.
Standard Accessories
Imada / Sundoo Force Gauge-30kgf - 1 Pc
Upper Stud Clamp - 1 Pc
Snap Clamp - 1 Pc
Lower Fabric Clamp, Lever Armlocking - 1 Pc
Three Pronged Clamp - 1 Pc
Standard Pressure Clamp - 1 Pc
Standards
ASTM PS79-96, ASTM F963, EN 71-1,
16 CFR 1500.51-53, M&S P115A
Weight 35 Kg
Dimensions 230x280x750 mm(LxWxH)
