Manómetros
Descripción
Features:

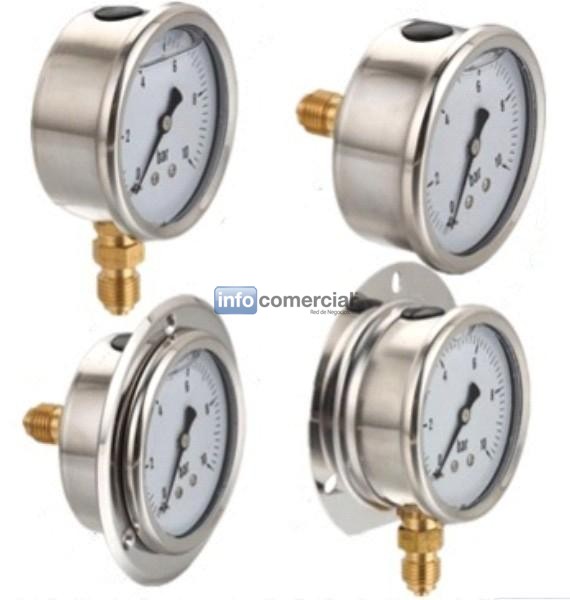

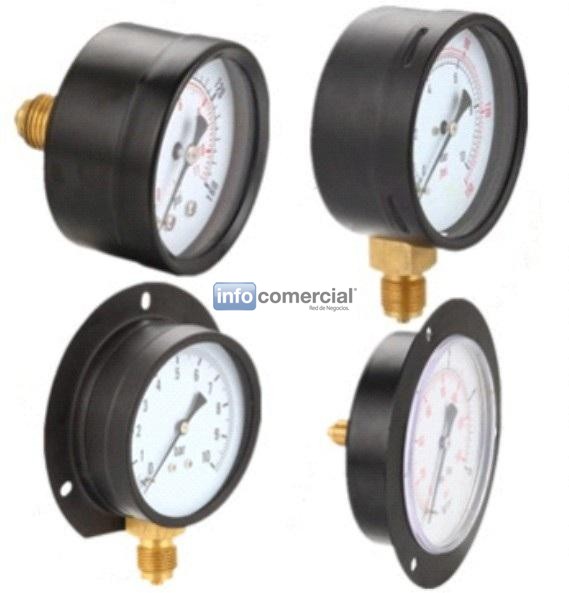

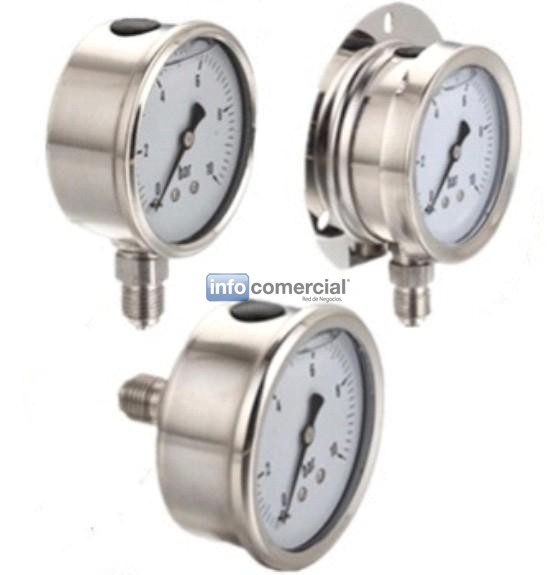

Standard Pressure Gauge(Manometer,manómetro) measures the pressure or vacuum of gas, liquid and vapor not corrosive to copper, steel and alloy.
Technical Specifications:
1). Type: Y
2). Accuracy: 1.0, 1.6, 2.5
3). Case diameter: 1.5”/40mm, 2”/50mm, 2.5”/63mm, 4”/100mm, 6”/150mm, 8”/200mm
4). Measurement range: 0.1~100Mpa, (psi, kpa, mpa, bar, kg/cm2 available)
5). Coupling: Bottom connection, Back connection (with flange)
6). Thread coupling: Metric Thread, BSP, NPT, BS and UN
7). Material:
a) Case: Carbon steel, engineering plastics
b) Bourdon tube: Brass or bronze
c) Thread: Brass
d) Movement: Brass
e) Dial and pointer: Aluminum
f) Window: PC lens, glass lens and acrylic lens
(OEM Available)
Standard Pressure Gauge(Manometer,manómetro) measures the pressure or vacuum of gas, liquid and vapor not corrosive to copper, steel and alloy.
Technical Specifications:
1). Type: Y
2). Accuracy: 1.0, 1.6, 2.5
3). Case diameter: 1.5”/40mm, 2”/50mm, 2.5”/63mm, 4”/100mm, 6”/150mm, 8”/200mm
4). Measurement range: 0.1~100Mpa, (psi, kpa, mpa, bar, kg/cm2 available)
5). Coupling: Bottom connection, Back connection (with flange)
6). Thread coupling: Metric Thread, BSP, NPT, BS and UN
7). Material:
a) Case: Carbon steel, engineering plastics
b) Bourdon tube: Brass or bronze
c) Thread: Brass
d) Movement: Brass
e) Dial and pointer: Aluminum
f) Window: PC lens, glass lens and acrylic lens
(OEM Available)
