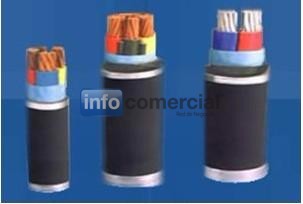

LSOH(Low Smoke Zero Halogen) CABLE
Descripción
Halogen-free cables WDZBYJV
LSOH(Low Smoke Zero Halogen) CABLE
Salesjycable[at]hotmail[dot]com
Jacket material PVC Wire maximum diameter, 500 mm
insulating material, Plastic insulated power cable Core material, red copper wire
voltage classes, Low and medium voltage power cables 35kv and below nominal cross section, 1-630 mm2
type WDZBYJV
insulation thickness 50 mm
cores 1-20
properties
1,oducts according to GB/T12706-2002 national standard
2, Partial discharge test: rated voltage Uo for and kv and below cable put power "and PC; Rated voltage Uo for more than eighteen kv power cable put < 5 PC.
3, 20ohm conductor dc resistivity: copper core acuities were 0.017241 OHM best callus induction/mo aluminium acuities were 0.028 OHM best callus induction/m.
4, combustion performance(flame retardant cable) according to GB/T18380-2001 standard test
Operating characteristic
1、Cable highest long-term working temperature is 90 ohm
2、Cable the ambient temperature under installation should not below 0 ohm, cable bending radius should be more than twenty times of cable diameter.
3、In case of short circuit, the highest temperature of the conductor shall not be more than 250 ohm, duration is no more than 5 seconds
4、Laying temperature shall not be lower than 0 ohm。
5、Short circuit, the highest temperature of the conductor shall not be more than 160 ohm, duration is no more than 5 seconds。
6、Cable used in rated voltage 0.6/1、1.8/3、3.6/6、6/6、6/10、8.7/10、8.7/15、12/20、21/35、26/35KV Power transmission and distribution system。
7、YJV YJLV suitable for indoor and outdoor installation, can withstand certain laying traction, but unable to bear external mechanical forces of situations. Single core cable are not allowed in the pipe laying in ferromagnetic materials. YJV22, YJLV22 suitable for buried laying, able to bear external mechanical forces effect, but unable to bear large pulling force.
